MTMPVD THERMA
MTM Therma is specially designed for decorative coating on glass. PVD coating gives the surface of
the glass products an aesthetic appearance, at the same time, titanium coating is antiallergic.
the glass products an aesthetic appearance, at the same time, titanium coating is antiallergic.
Product Gallery

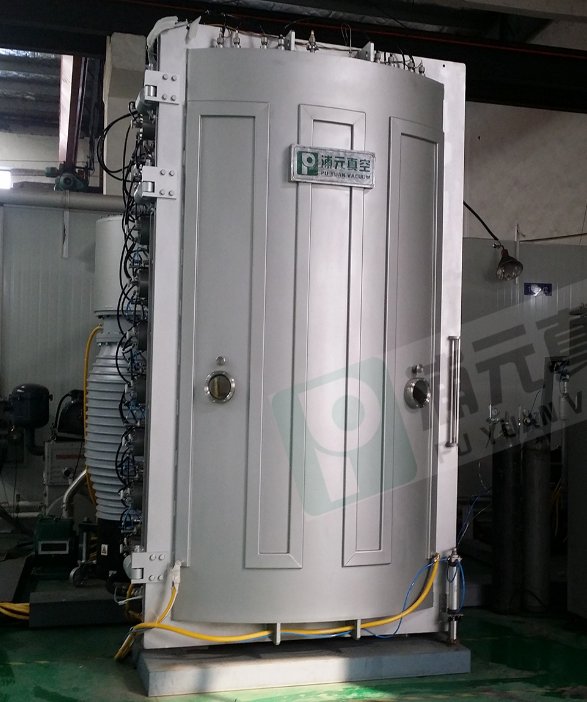

Vacuum Chamber
Inner Diameter 2000mm* Inner Height 2500mm, Vacuum chamber main body adopts 304 stainless steel, external reinforcing rib
adopts Q235; Vertical circular type, single front open door; On the door equipped with two inspection windows, can check the
inner working during deposition.
Multi arc ion costing system
Equipped with 18 sets of A100 type arc targets; Equipped with 18 sets of arc power supply, max. output current 200A;
Equipped with one set of 40KW pulse bias power supply; New machine will equipped with 18 titanium targets,
target size: φ100*40; Multi arc target holder and sealing adopt water cooling to protect them.
Vacuum pumping System
High vacuum pump: Two sets of KT-800 diffusion pump, (brand: Shenyang zhenlong), one set of valve.
Pumping Speed: 20000L/S, Power: 13KW/set; Equipped with two sets of cold trap; Use the electromagnetic heating,
with low electricity consumption and low failure rate.
Inner Diameter 2000mm* Inner Height 2500mm, Vacuum chamber main body adopts 304 stainless steel, external reinforcing rib
adopts Q235; Vertical circular type, single front open door; On the door equipped with two inspection windows, can check the
inner working during deposition.
Multi arc ion costing system
Equipped with 18 sets of A100 type arc targets; Equipped with 18 sets of arc power supply, max. output current 200A;
Equipped with one set of 40KW pulse bias power supply; New machine will equipped with 18 titanium targets,
target size: φ100*40; Multi arc target holder and sealing adopt water cooling to protect them.
Vacuum pumping System
High vacuum pump: Two sets of KT-800 diffusion pump, (brand: Shenyang zhenlong), one set of valve.
Pumping Speed: 20000L/S, Power: 13KW/set; Equipped with two sets of cold trap; Use the electromagnetic heating,
with low electricity consumption and low failure rate.
| Holding pump | One set of 2X-30 rotary vane pump, (brand: Chengdu Nanguang); Pumping Speed: 30L/S, Power: 3KW/set; |
|---|---|
| Total Power | Total Power about 195KW; Actual running power about 55KW/h. |
| Style/Type | Sports, Formal |
| Lining | 100% polyester taffeta with a DWR finish |
| Material | Lather, Cotton, Silk |
| Total Power | Total Power about 195KW; Actual running power about 55KW/h. |
| Cycle time | Around 40-50 minutes one cycle. (depends on the raw material). |
| Floor area | L8000mm*W4000mm*H3500 mm.. |
| Total water consumption | Water flow rate about: 8m3/h. |
| Total weight | About 11000kg |
| Electrical Control | It equipped with PLC and touch screen, will be easy to learn and operate. |
